700c (ETRTO 622×22) Carbon Fibre Road Wheelset – Center Lock Disc – QR / Thru Axle – 8/9/10/11/12 Speed – HG / XDR / Microspline – Tubeless Compatible – 1480g

Product Code: 744654

From £580.00

Sale Sold out

Availability: In stock

Only 4 left in stock

Description

Brand - Madspeed7

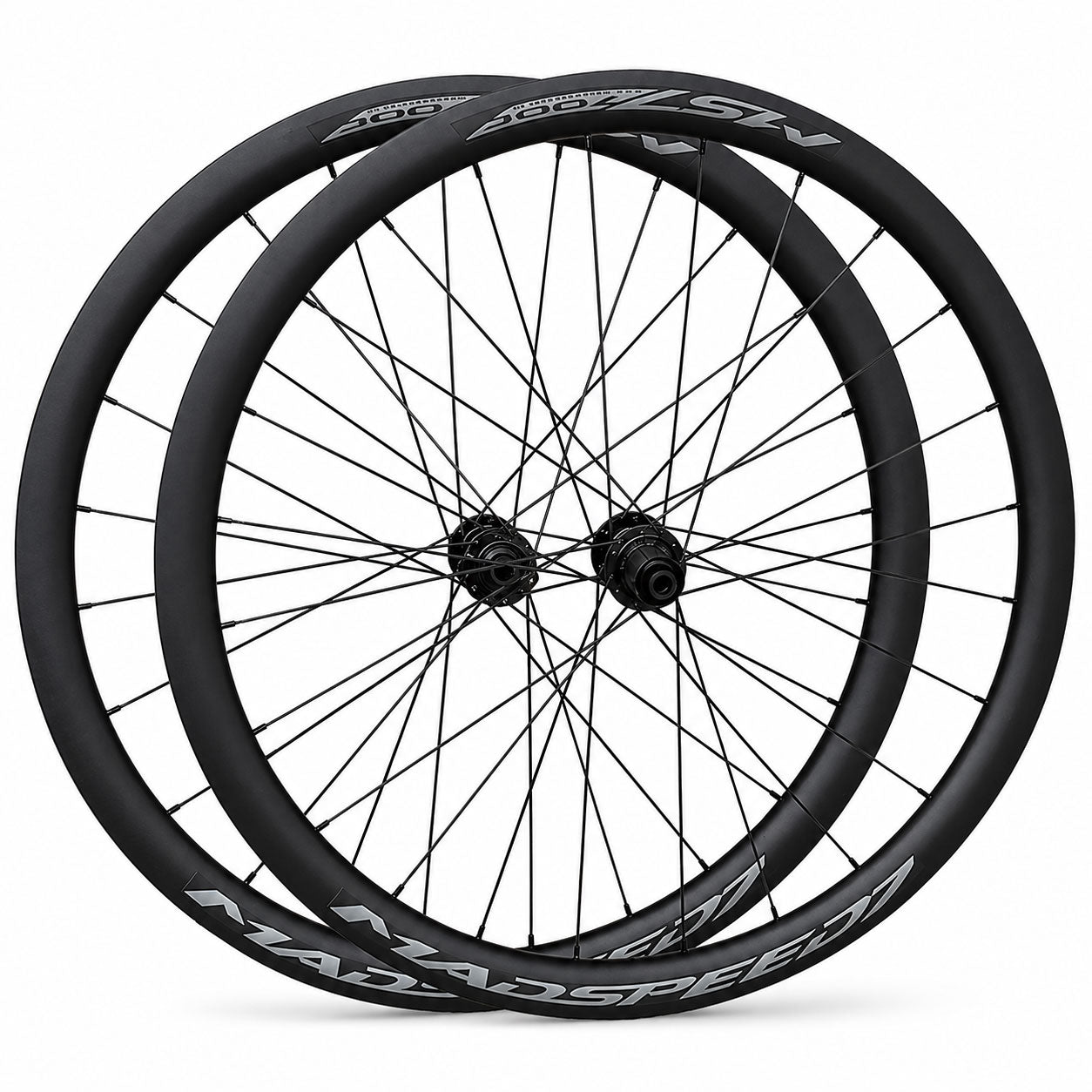

Premium quality 700c (ETRTO 622x22) carbon road bike wheelset
Precision 100% hand built wheels
Choice of freehub - HG, SRAM XDR or Shimano Microspline
Choice of axle/hub type – QR or Thru Axle
Suggested maximum system weight of 125kg (total weight of fully kitted up rider, bike and luggage)
Wheelset weight – 1480g
Please note QR stands for standard quick release axles. For thru axle wheels, the 12mm maxles are not supplied. For the QR wheels, standard QR skewers will be supplied. If you are unsure of anything on this listing, please contact us and we will respond promptly.

Rims
Lightweight T800 carbon fibre construction
Asymmetrical rim with a 2.5mm offset for more equalised tension
44mm deep profile
Hooked 22mm internal profile is optimised for 28-32mm tyres (Tyres up to 25-50mm can also be safely used)
All matte finish
Clincher / Tubeless Compatible (can be run either with standard clinchers or road tubeless tyres. Tubeless rim tapes and valves are NOT supplied)
Beadlock feature locks the tyre bead to the rim, preventing tyre slippage or air loss whilst riding
2 water drainage holes (one on each side of the rim) allow accumulated water inside the rim to drain out, thus enhancing the performance of the wheels
Presta valve holes

Hubs

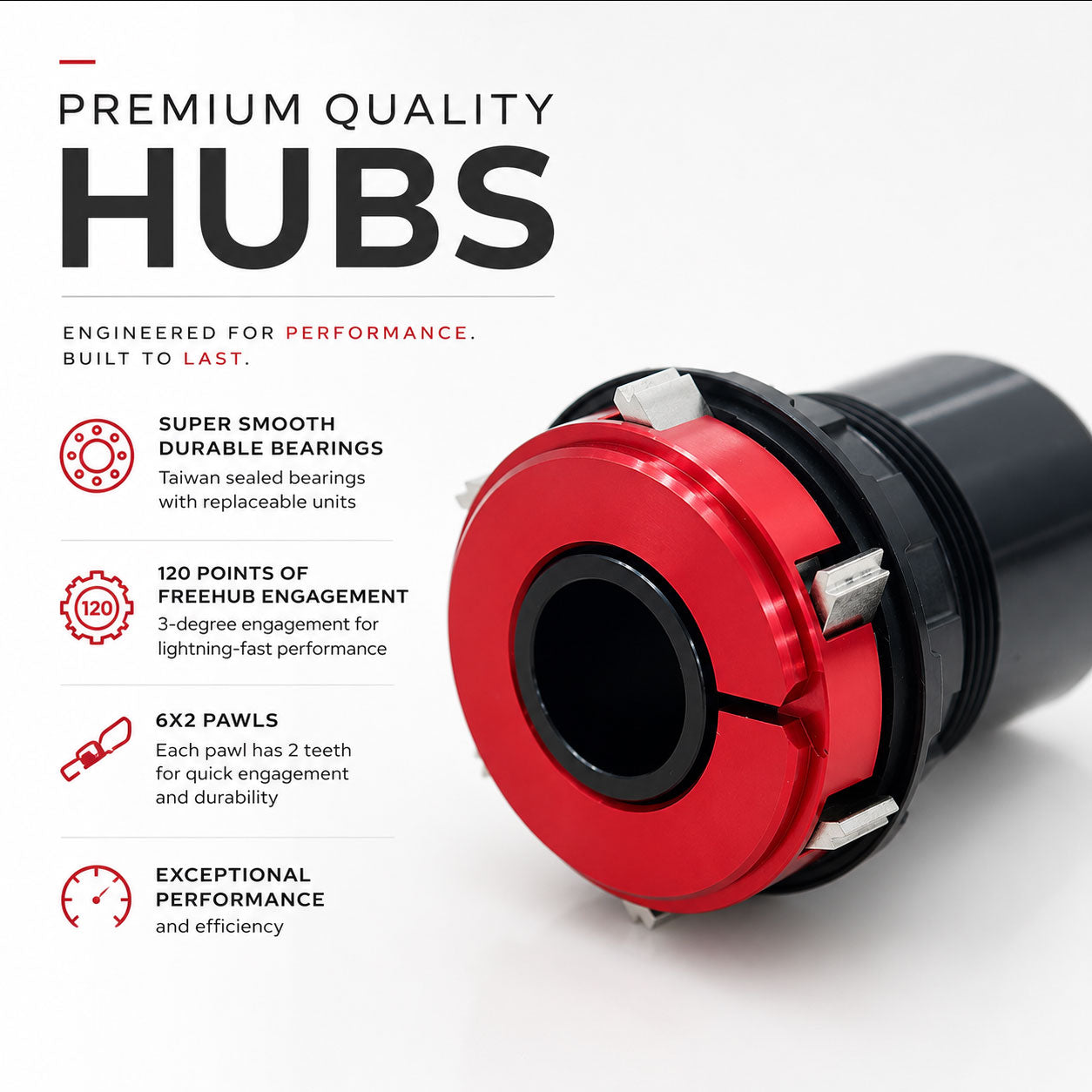

Premium quality Taiwan sealed bearings hubs
Front hub 2 sealed bearings, rear hub 4 sealed bearins
High grade TPI precision sealed bearings from Taiwan - Upgraded to LU/LB seals which are low friction on the inside and provide maximum sealing on the exposed faces
Sealed cartridge replaceable units
120 points of freehub engagement (3-degree engagement), 6x2 pawls (each pawl has 2 teeth for quick engagement and durability

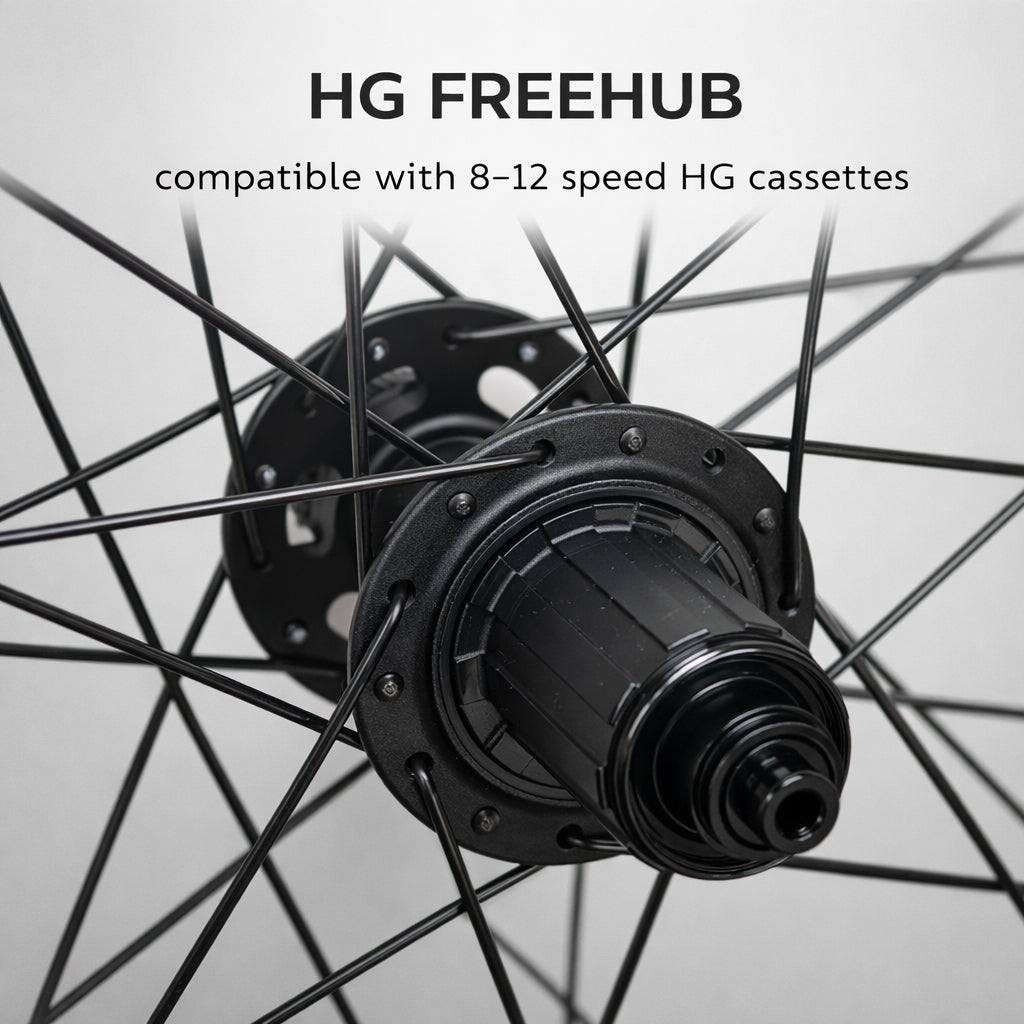

HG freehub - Compatible with HG-standard 8-12 speed cassettes

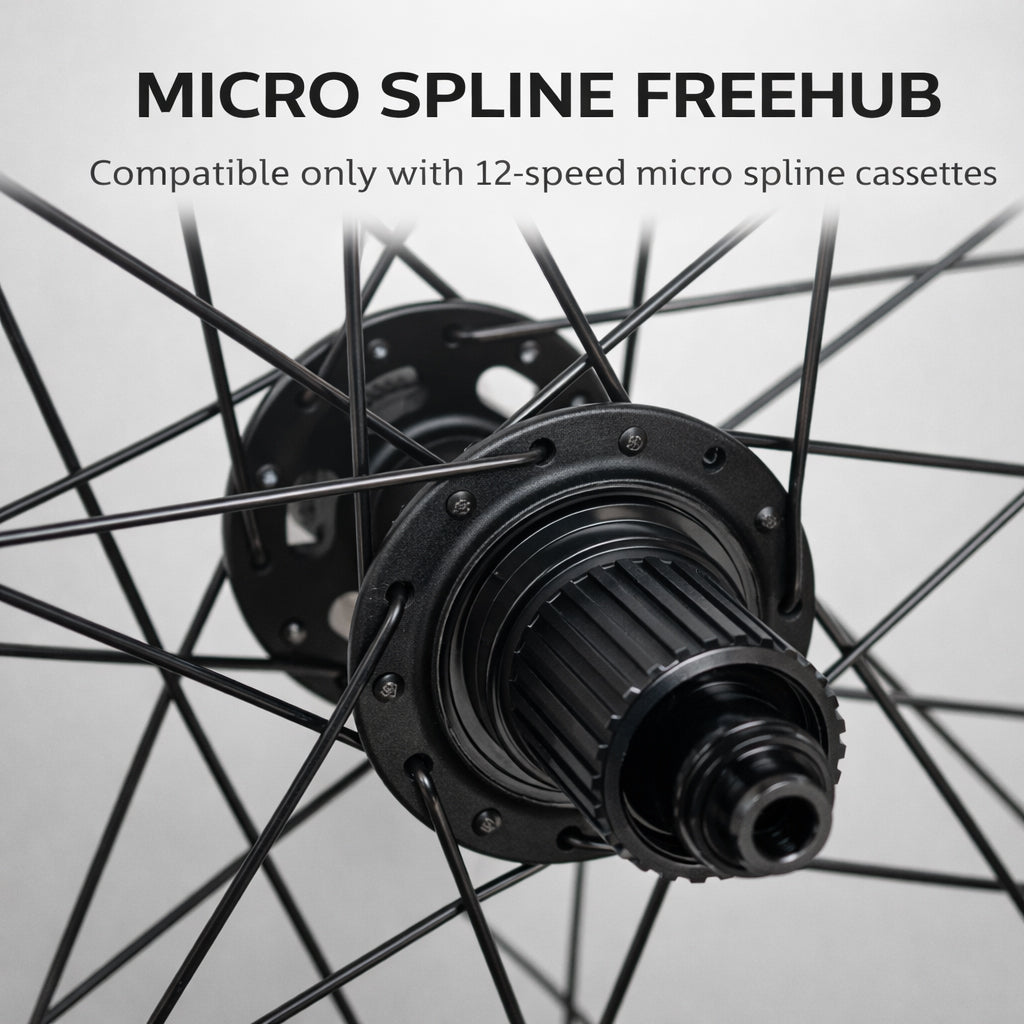

Microspline freehub - Compatible with Shimano Microspline-standard 12 speed cassettes

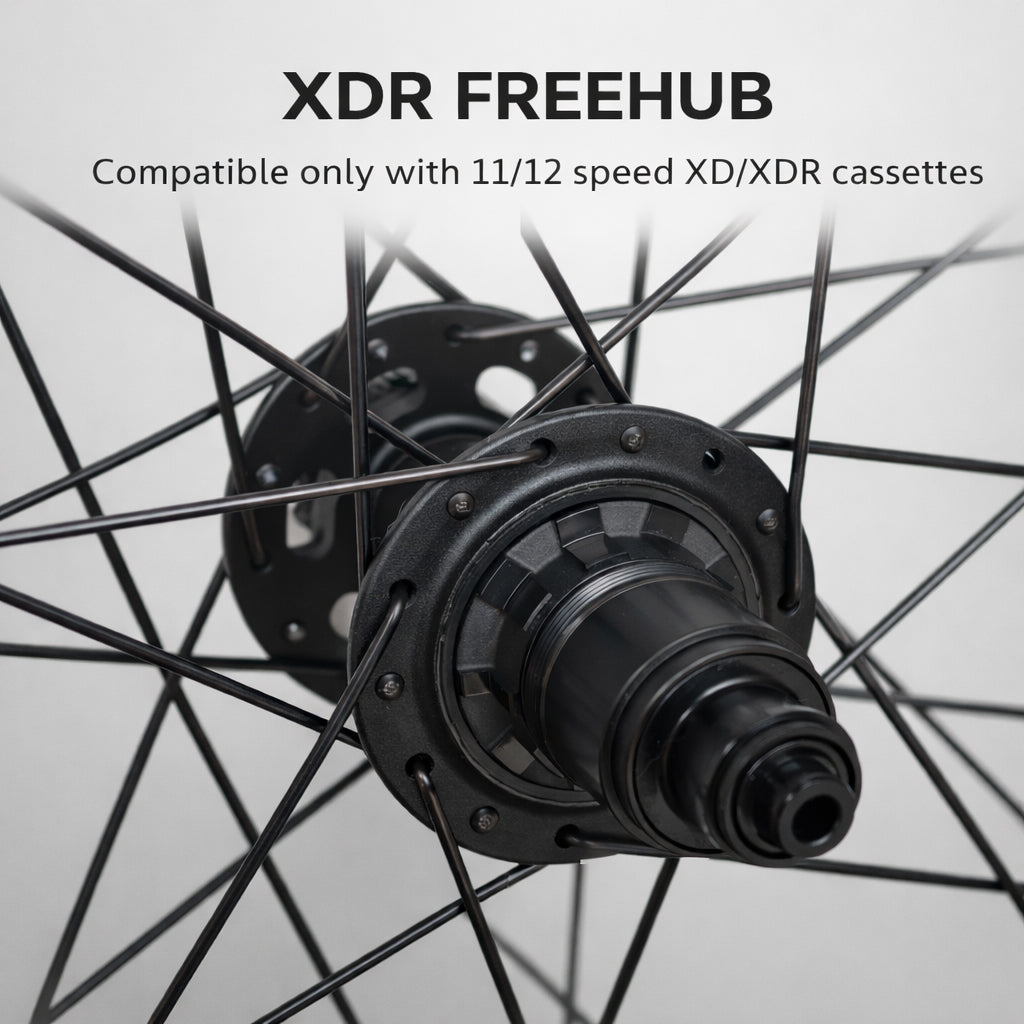

XDR freehub - Compatible only with SRAM XD/XDR-standard 11/12 speed cassettes
For 9x100mm & 12x100mm fork dropouts
For 10x135mm & 12x142mm frame dropouts

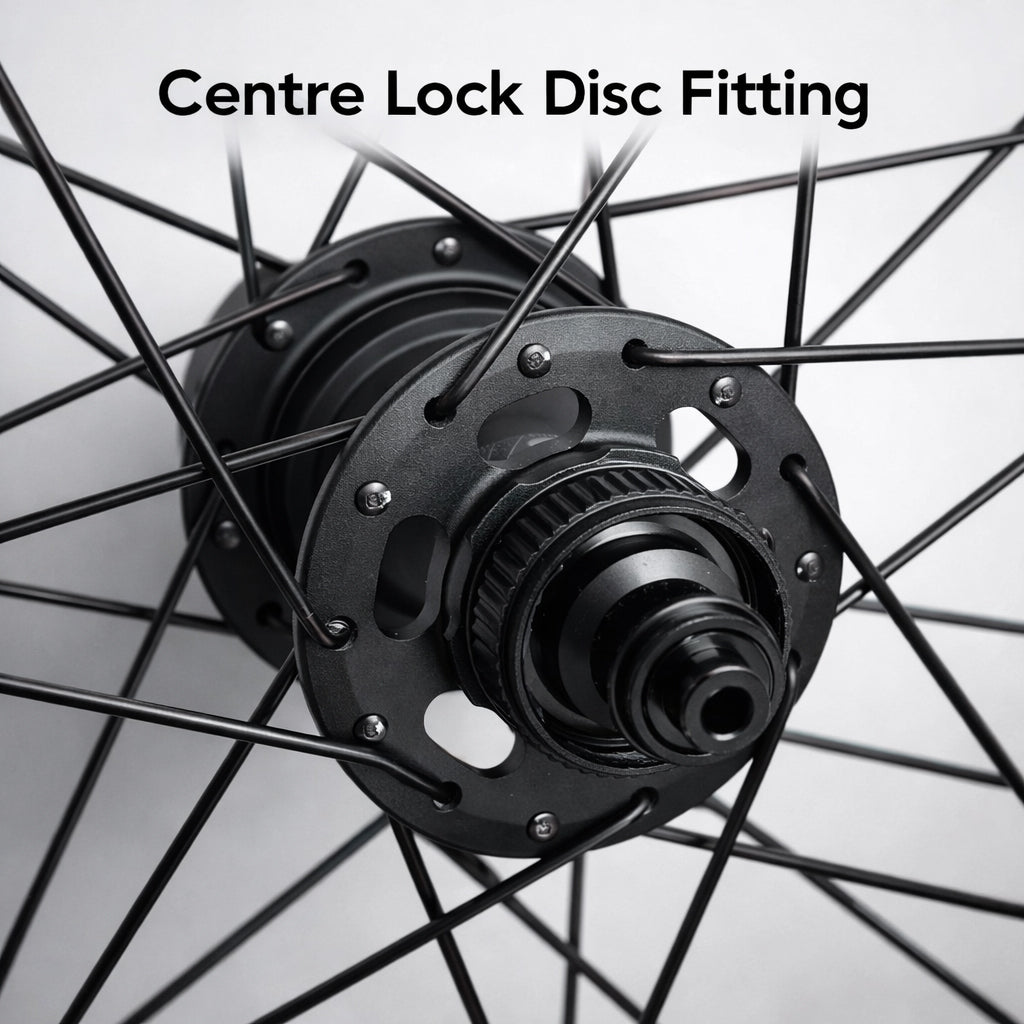

Centre lock disc mount for centre lock rotors (6-bolt rotors will require an adapter. Adapter is NOT supplied)

Spokes
Pillar PSR XTRA 2.2-2.0/0.95-2.0 Aero butted profile (2.2 mm at the head for the patented Pillar Spoke Re-enforcement)
The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area
Pillar PSR patented spokes are four times stronger than standard spokes
Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Black stainless treatment
24 front spoke count, in a 2 cross lacing pattern
28 rear spoke count, in a 3 cross lacing pattern
16mm length aluminum nipples paired with washers for a stronger rim connection (Washers increase the bearing surface area, spreading the stress over a larger area of the rim. They also reduce friction, which makes for easier & more precise truing)
J-bend spokes allows for easy sourcing and replacement

Reviews

Why Our Wheels?

If you're looking for quality wheels that are genuinely hand-built to a high standard, without the hand-built price tag, you're in the right place. Every wheel is backed by our no-nonsense 1-year warranty and lifetime support.

1. Hand-Built Wheels

We’re passionate wheel builders, and all our wheels are genuinely hand-built with care, allowing us to pay close attention to every detail of the build.

Each spoke is carefully tensioned to ensure even and consistent tension across the entire wheel, creating a strong, stable and reliable wheel designed for long-term performance, durability and reliability.

During the build process, each wheel is stress-relieved several times to help the spokes settle correctly. We also carefully check the dishing to ensure the rim is correctly positioned and centred over the hub.

2. Quality Components

We use quality rims, spokes and hubs, which are carefully sourced and selected for durability and reliability. Depending on the model, we use components from trusted brands such as DT Swiss, Pillar and Shimano.

3. One-Year Warranty & Lifetime Support – Complete Peace of Mind

We are extremely confident that you’ll love your new wheels and your experience with Madspeed7. However, in the rare event that you experience an issue within the warranty period, simply contact us and we’ll be here to put it right.

Our support doesn’t stop there. We offer lifetime support, with spare parts available for our wheels should you ever need them in the future.

With Madspeed7, our commitment doesn’t end with your purchase or when your warranty expires. We’re here to support you for the lifetime of your wheels.
