Product Code: 100781
Availability: In Stock
From £165.75
From
£195.00
£165.75
You save £29.25
Only 18 left in stock

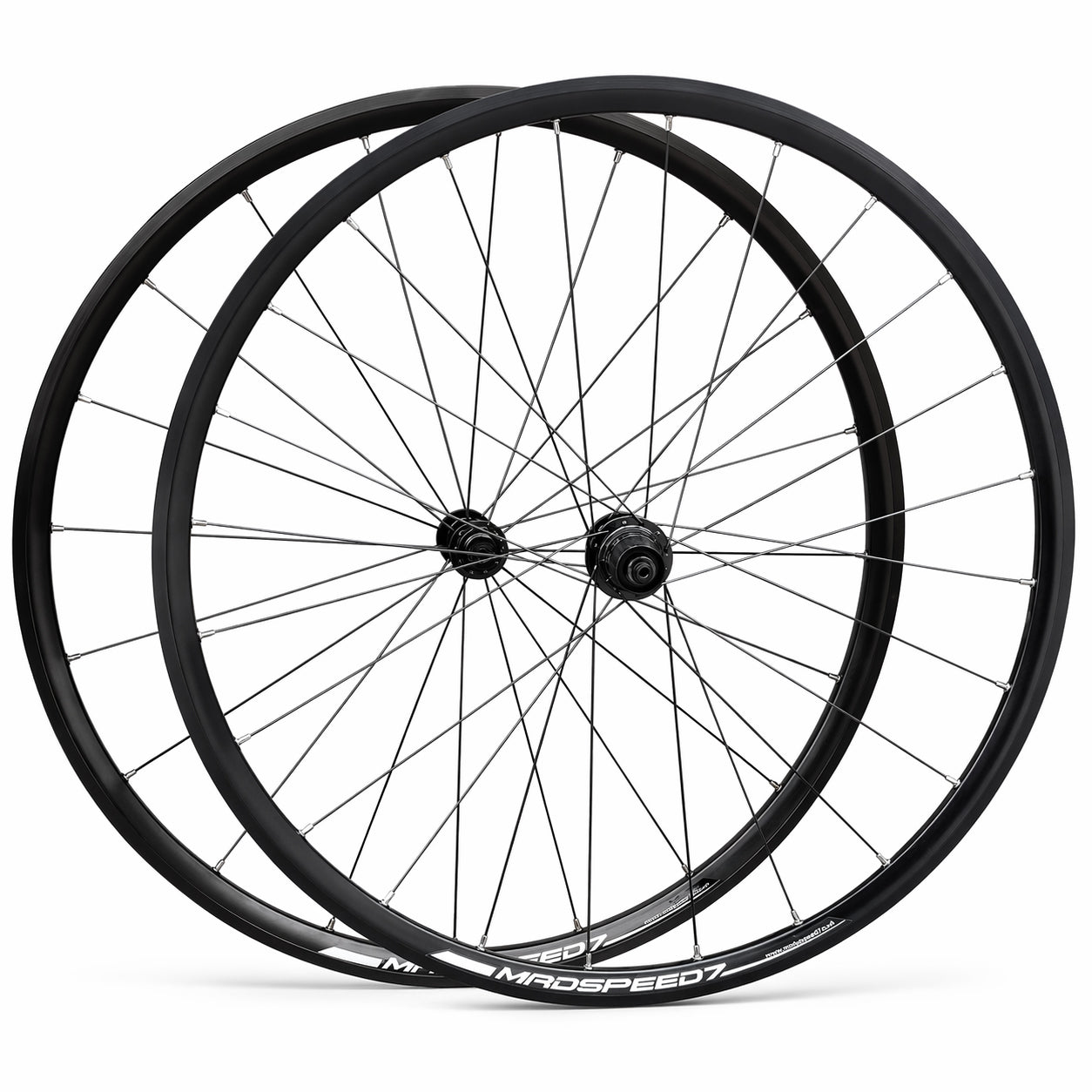

High quality lightweight road wheelset built on Pillar PSR Aero spokes

Brand - Madspeed7
700c (ETRTO 622x14) road bike wheelset
Precision 100% hand built wheels
Choice of freehub - HG or SRAM XDR
Suggested maximum system weight of 115kg (total weight of fully kitted up rider, bike and luggage)
Suitable for road bikes with dropped handlebars & using rim brakes only
Wheelset weight – 1590g

Rims
6061-T6 aluminum alloy
Welded for strength
Precision CNC machined rim brake surface
Stainless steel eyelets for durability
Anodised finish
25mm depth and 14mm inner width
Optimised for 23-28mm tyres
Designed for use with clincher tyres only (tyre & tube combination)
Presta valve holes

Hubs
Premium quality Taiwan sealed bearings hubs
Front hub 2 sealed bearings, rear hub 4 sealed bearings
Smooth NBK precision bearings from Taiwan
Sealed cartridge replaceable units

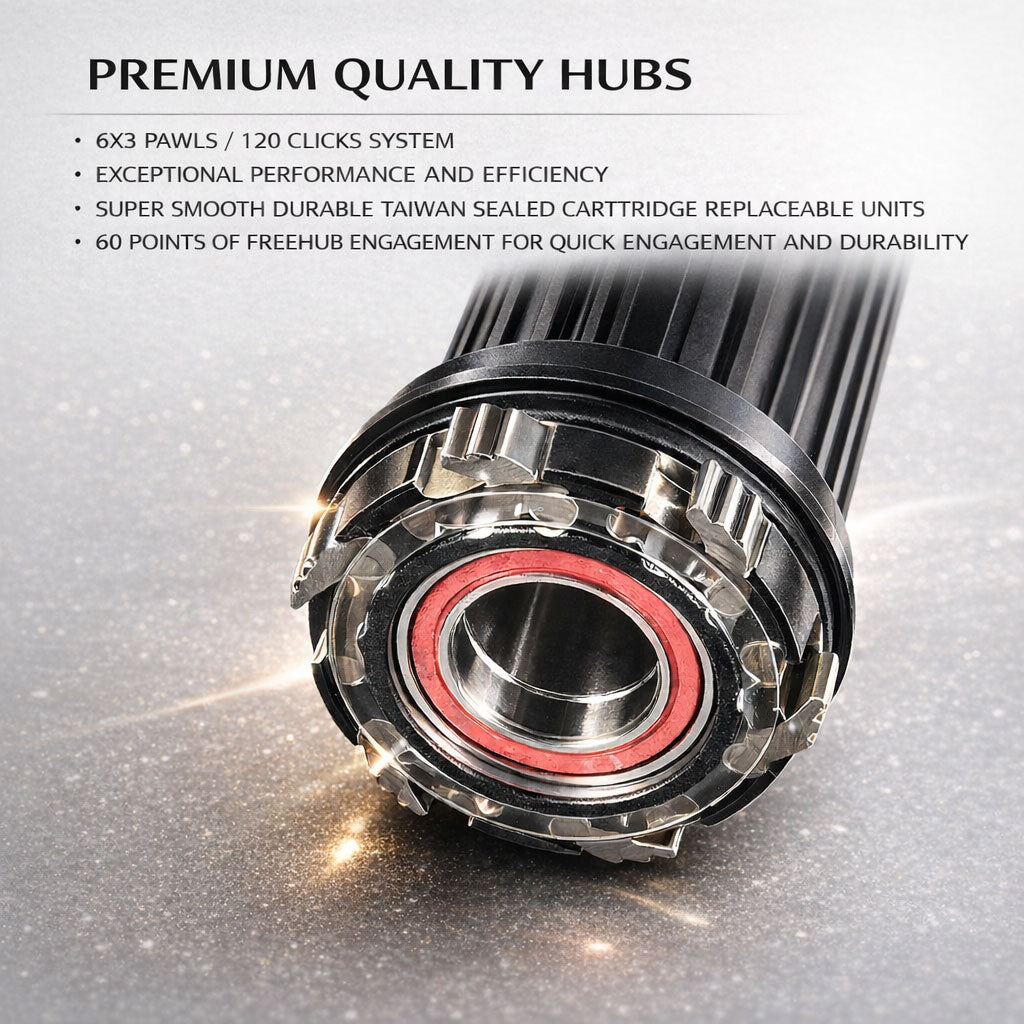

60 points of freehub engagement (6-degree engagement),  6x3 pawls (each pawl has 3 teeth) for quick engagement and durability

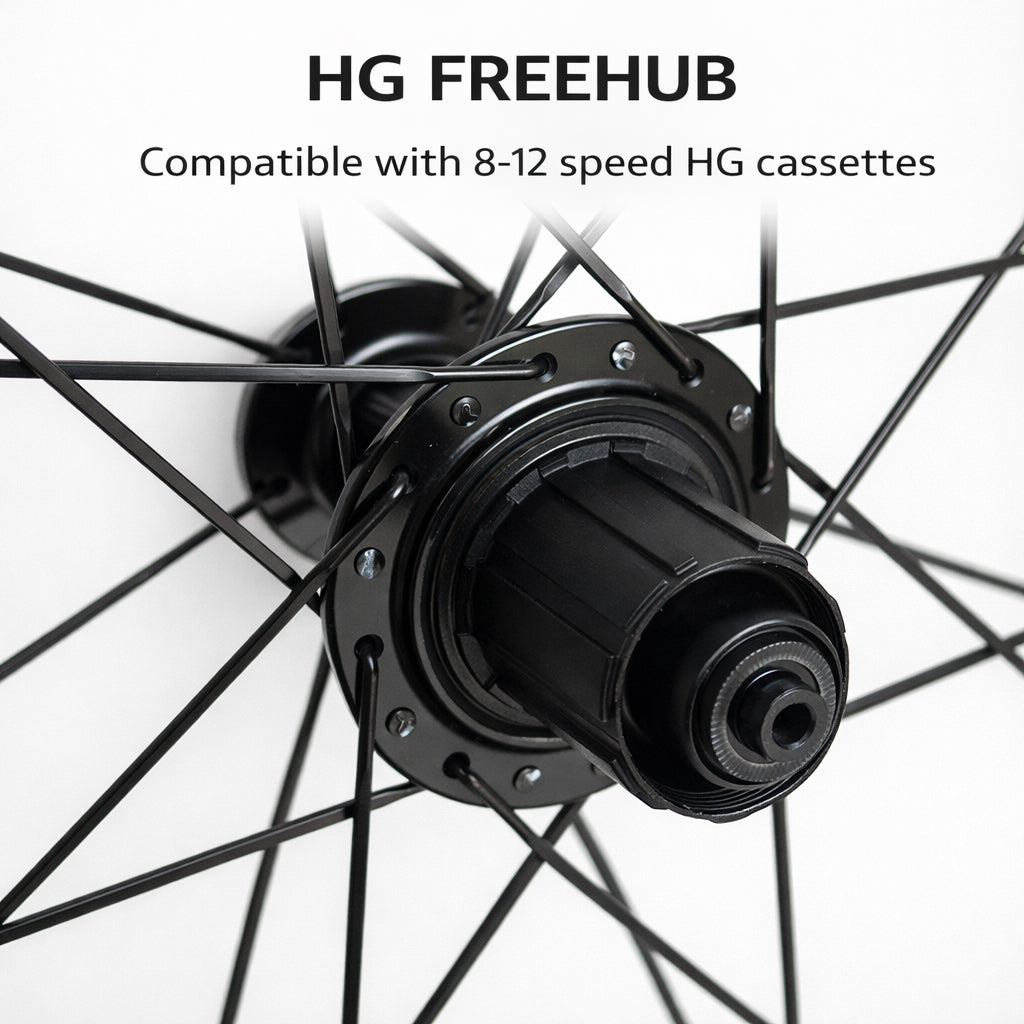

HG Freehub is compatible with 8-12 speed HG cassettes

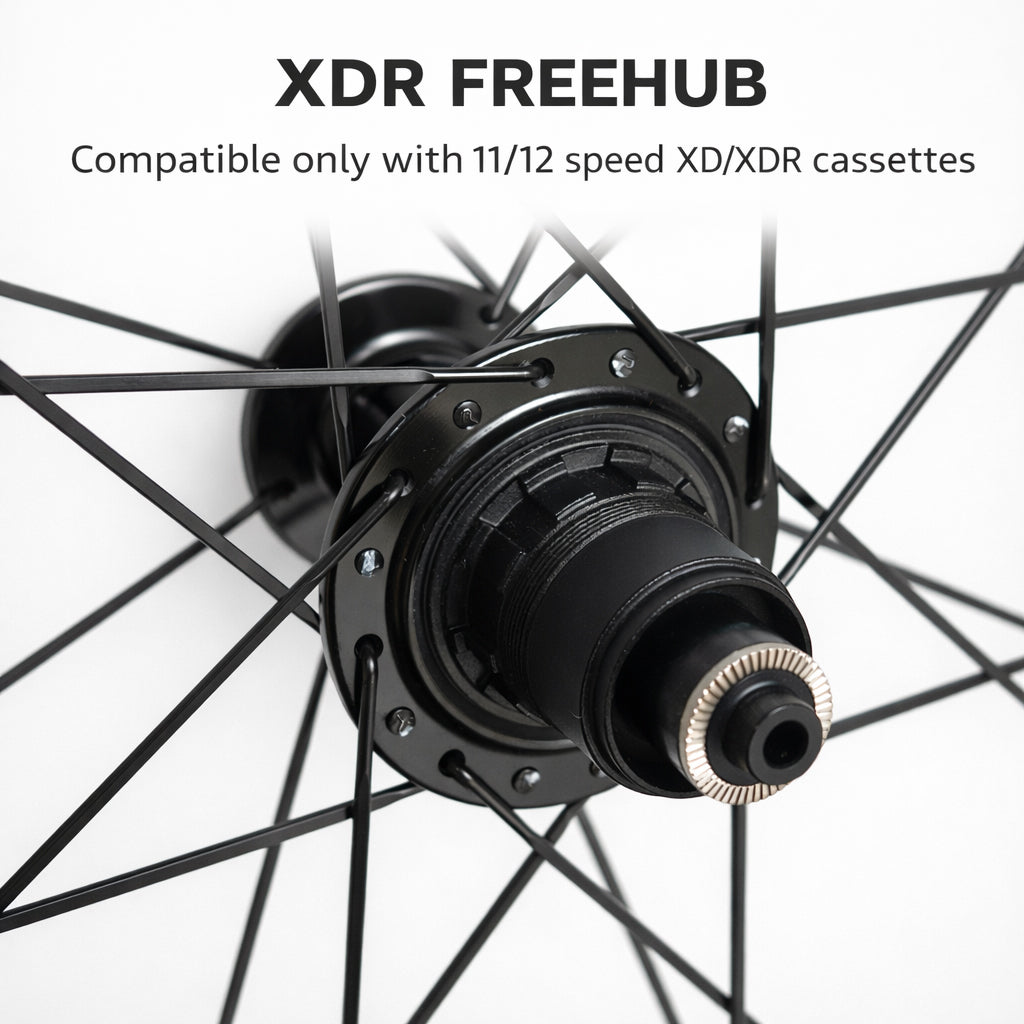

Sram XDR version is only compatible with 11/12 speed XD/XDR cassettes

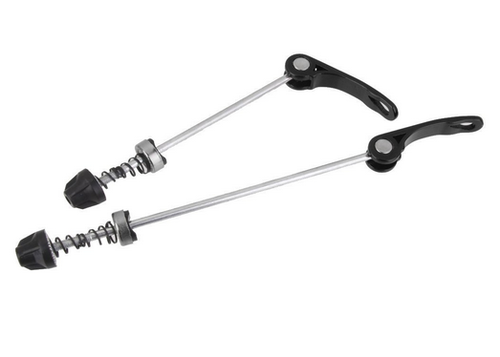

For 9x100mm fork dropouts (QR skewers are included)
For 10x135mm frame dropouts (QR skewers are included)

Spokes
Pillar PSR Aero 1423
Aero butted 2.2-2.3/1.5-2.0 (2.2 mm at the head for the patented Pillar Spoke Re-enforcement)
The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area
Pillar PSR patented spokes are four times stronger than standard spokes (Pillar PSR Aero 1423 has a breaking strength of 320KGF)
Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Black stainless treatment
20 front radial lacing spoke count with brass nipples
24 rear 2:1 ratio spoke count with brass nipples
J-bend spokes allows for easy sourcing and replacement
