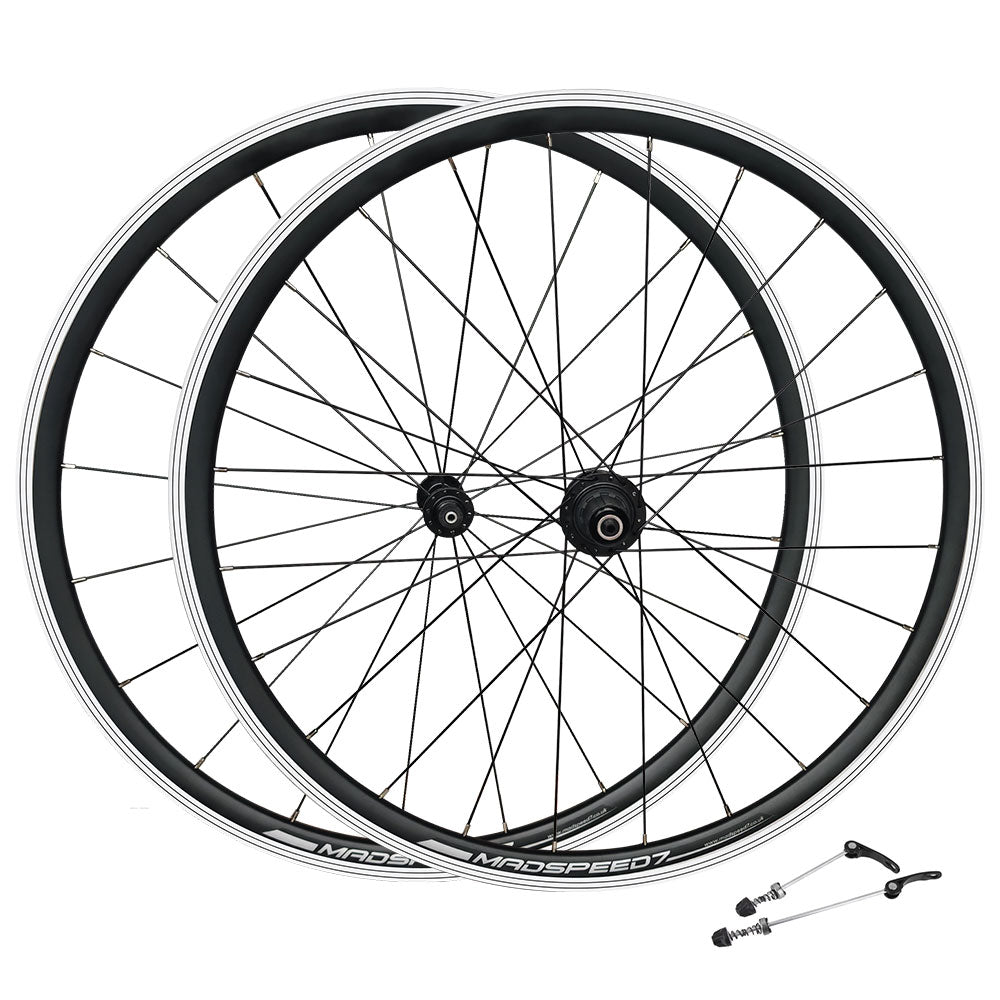

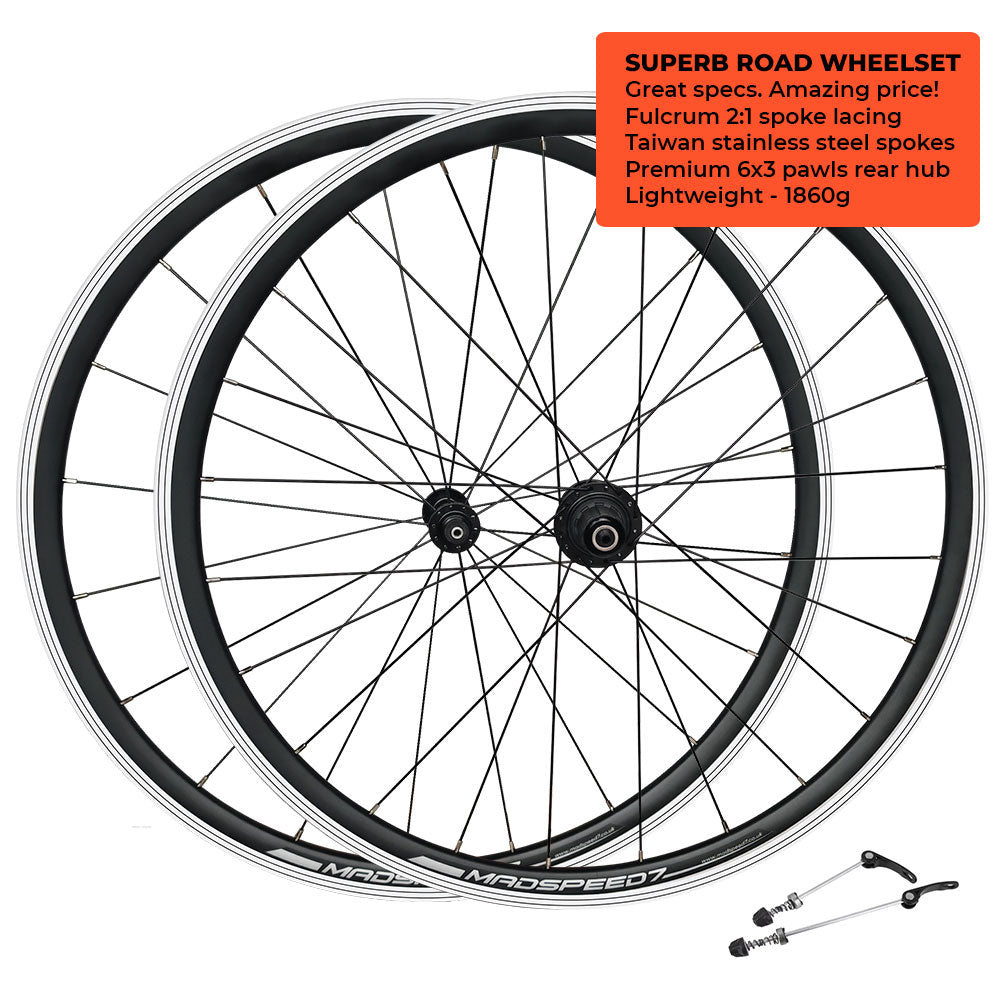

QR 700c (ETRTO 622x14) Road Racing Bike Wheelset 7/8/9/10/11 Speed - Premium 6x3 Pawls Sealed Bearings Hubs - 30mm Deep Double Wall Rims - Lightweight 1860g

Product code - 193055

PLEASE NOTE WHEELS ARE SUITABLE FOR 700C ROAD BIKES WITH DROPPED HANDLEBARS & USING RIM BRAKES ONLY.

700c (ETRTO 622x14) road wheelset
Precision 100% hand built wheels
Compatible with 7-11 speed HG cassettes (Spacers are supplied for use of 7-10 speed cassettes)
Suggested maximum system weight of 110kg (total weight of fully kitted up rider, bike and luggage)
Wheelset weight – 1860g
Supplied with quick release skewers & rim tapes
Suitable for rim brakes only

Rims
Double wall 6061-T6 alloy rims
30mm deep aero rim
14mm inner rim width supports 23-28mm clincher tyres
CNC machined sidewalls with wearline indicator
Presta valve holes

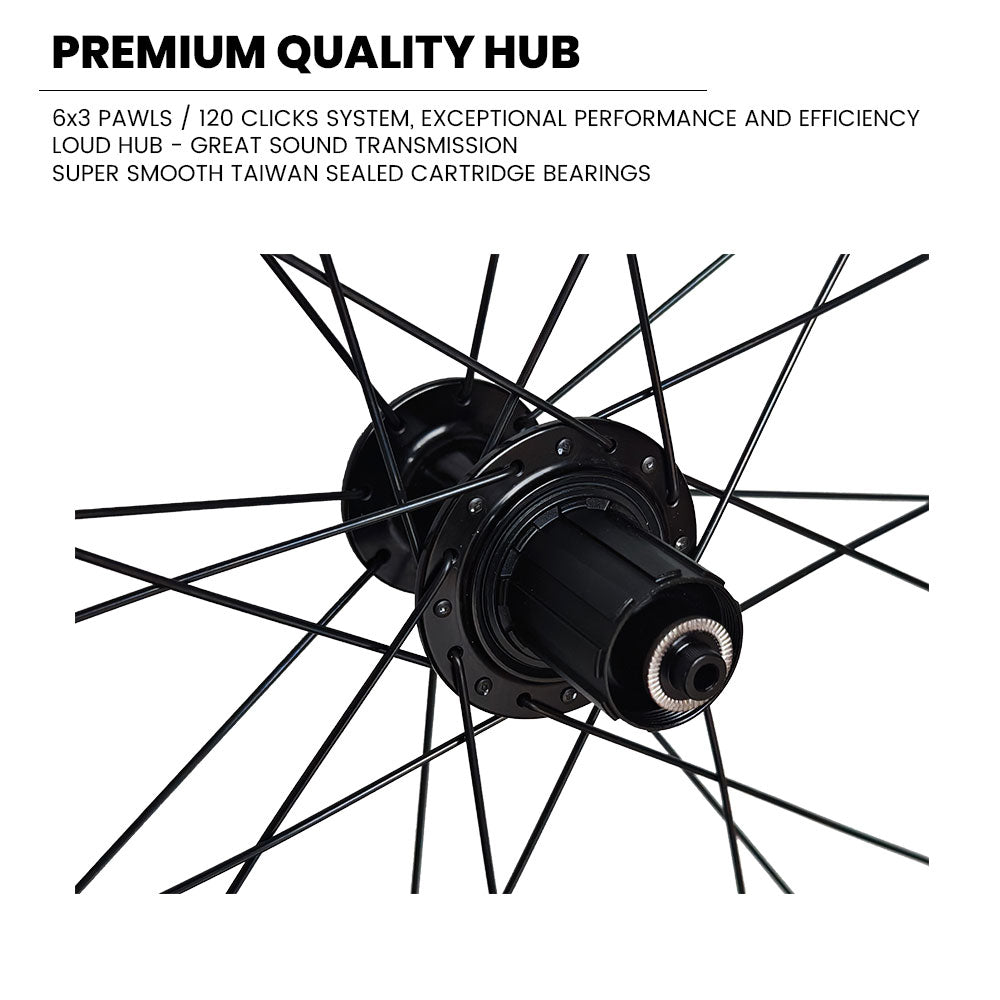

Hubs
High quality sealed bearings hubs
Front hub 2 sealed bearings, rear hub 4 sealed bearings
Smooth NBK precision bearings from Taiwan
Sealed cartridge replaceable units
60 points of freehub engagement (6-degree engagement),  6x3 pawls (each pawl has 3 teeth) for quick engagement and durability
Front axle size - quick release 9x100mm
Rear axle size - quick release 10x130mm

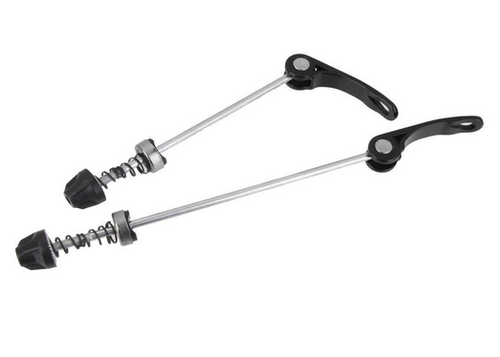

Supplied with quick release skewers

Spokes
High quality stainless steel spokes from Taiwan
20 front spokes radial lacing
24 rear spokes 2:1 Two-to-One spoke ratio lacing (8 spoke radial lacing on non drive side, 16 spoke 3x lacing on drive side)
Black stainless treatment


The Fulcrum 2:1 Two-to-One Spoke Ratio is a patented technology that increases the number of spokes in critical areas of a bicycle wheel to improve power transfer and reduce torsion:

Power transfer
The extra spokes allow two spokes to perform the function of one, which improves power transfer and reduces energy loss.

Spoke tension
The extra spokes help balance spoke tension between the drive and non-drive sides of the wheel.

Fatigue life
The improved spoke tension and reduced torsion help extend the fatigue life of the rim, hub, and spokes.

Slackening and torsion
The extra spokes help limit slackening and torsion in the wheel.

The 2:1 Two-to-One Spoke Ratio was developed by Fulcrum engineers after observing the results of daily wheel tests. The tests showed that the forces on the spokes and sides of the wheels are different, and that the front and rear wheels have different requirements. For example, the front wheel needs to remain stable while braking, while the rear wheel needs to compensate for the chain side's force.
