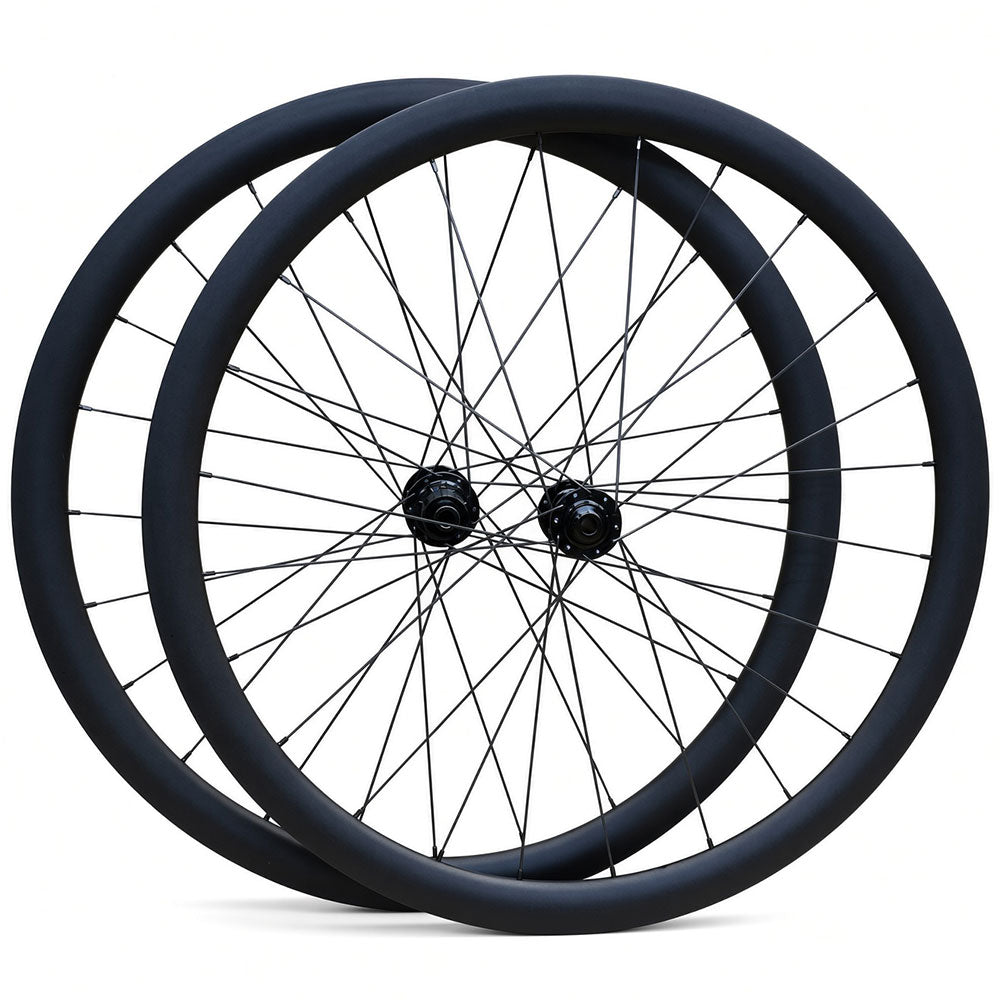

700c Road Wheelset – Thru Axle – Center Lock Disc – 19mm Inner Rim – Tubeless Compatible – 8–12 Speed – HG / XDR – 1680g

Product Code: 477132

From ~~£275.00~~ £233.75

You save £41.25

Sale Sold out

Availability: In stock

Description

A premium hand-built 700c road bike wheelset designed for lightweight performance, strength and smooth rolling efficiency. Featuring high-strength 6069-T6 aluminium alloy rims with a 38mm depth and 19mm internal width, premium sealed-bearing hubs and Pillar PSR Aero 1423 spokes, this wheelset combines exceptional build quality, aerodynamic performance and long-lasting reliability.

Specifications

Wheel Size	700c (ETRTO 622x19)
Rim	High-precision, high-strength sleeved rim, 6069-T6 aluminium alloy (69% more tensile strength than standard 6061-T6 alloy) Sand-blasted anodised finish 4D precision drilling ensures spoke holes are drilled at optimised angles, allowing spokes and nipples to align as straight as possible, improving wheel performance and reducing stress at the spoke heads and nipples
Rim Depth	38mm
Internal Rim Width	19mm
Rim Type	Clincher / Tubeless Compatible
Tyre Compatibility	Optimised for 25–32mm tyres; compatible with wider tyres up to 40mm
Front Hub	Taiwan NBK sealed cartridge bearings, 2× sealed bearings 12×100mm Thru Axle
Rear Hub	Taiwan NBK sealed cartridge bearings, 4× sealed bearings 12×142mm Thru Axle

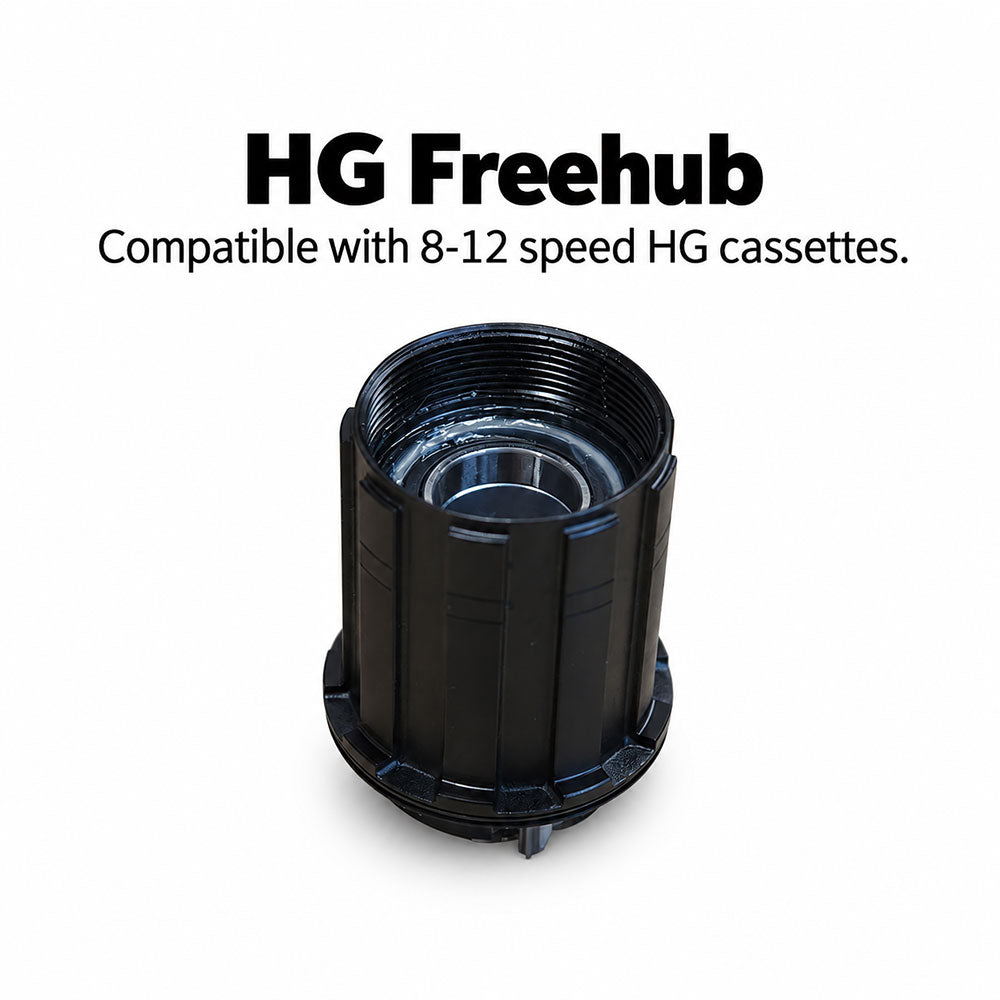

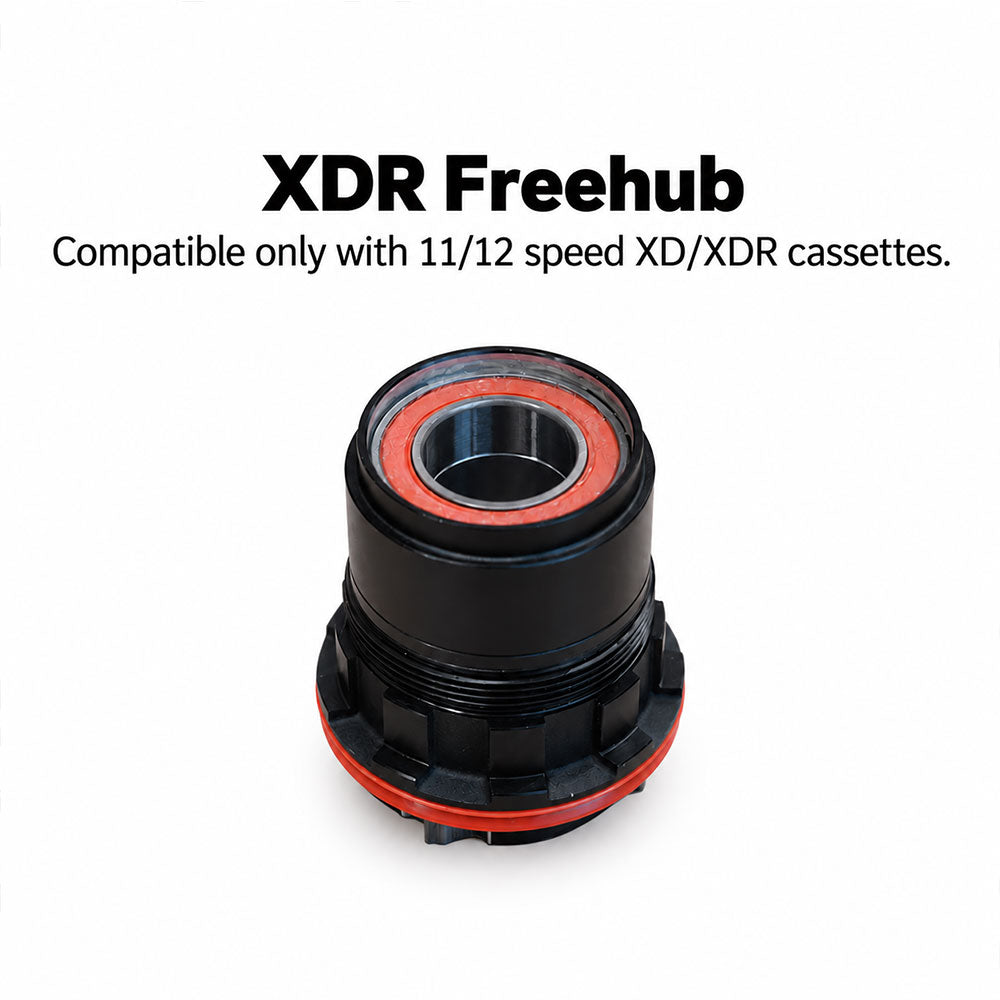

Freehub Type	HG / XDR
Cassette Compatibility	HG: Compatible with 8–12 speed HG-standard cassettes XDR: Compatible with SRAM 11/12-speed XD/XDR cassettes
Brake Compatibility	Disc Brake Only
Disc Mount	Centre Lock (6-bolt rotors require an adapter, not supplied)
Spokes	24x Pillar PSR Aero 1423 spokes, aero butted 2.2–2.3/1.5–2.0mm, black stainless steel, J-bend, 2-cross lacing, aluminium nipples (front & rear)
Valve	Presta
Wheelset Weight	1,710g
Maximum Recommended System Weight	115kg (rider + bike + luggage)

Pillar PSR Aero 1423 Spokes: These premium-quality aerodynamic spokes feature Pillar's patented Spoke Reinforcement (PSR) technology, with additional material at the spoke head immediately before the J-bend to strengthen this critical stress area. Their aero-butted construction combines strength, reduced weight and aerodynamic efficiency. Manufactured from high-grade T302 (18/10) stainless steel wire by Sandvik Sweden, these spokes are designed for exceptional durability and reliability. Pillar states that its patented PSR spokes are four times stronger than standard spokes, with the PSR Aero 1423 having a breaking strength of 320kgf.

Please Note: These wheels are designed for 12mm thru-axle road bikes only. The 12mm thru axles (maxles) are not supplied. Tubeless rim tapes and valves are not included. If you are unsure about axle or freehub compatibility, please contact us before ordering and we will be happy to assist.

Reviews

Why Our Wheels?

If you're looking for quality wheels that are genuinely hand-built to a high standard, without the hand-built price tag, you're in the right place. Every wheel is backed by our no-nonsense 1-year warranty and lifetime support.

1. Hand-Built Wheels

We’re passionate wheel builders, and all our wheels are genuinely hand-built with care, allowing us to pay close attention to every detail of the build.

Each spoke is carefully tensioned to ensure even and consistent tension across the entire wheel, creating a strong, stable and reliable wheel designed for long-term performance, durability and reliability.

During the build process, each wheel is stress-relieved several times to help the spokes settle correctly. We also carefully check the dishing to ensure the rim is correctly positioned and centred over the hub.

2. Quality Components

We use quality rims, spokes and hubs, which are carefully sourced and selected for durability and reliability. Depending on the model, we use components from trusted brands such as DT Swiss, Pillar and Shimano.

3. One-Year Warranty & Lifetime Support – Complete Peace of Mind

We are extremely confident that you’ll love your new wheels and your experience with Madspeed7. However, in the rare event that you experience an issue within the warranty period, simply contact us and we’ll be here to put it right.

Our support doesn’t stop there. We offer lifetime support, with spare parts available for our wheels should you ever need them in the future.

With Madspeed7, our commitment doesn’t end with your purchase or when your warranty expires. We’re here to support you for the lifetime of your wheels.
