Product Code: 279848
Availability: In Stock
From £292.50
From
£325.00
£292.50
You save £32.50
Only 1 left in stock
Compatibility Check? Ask An Expert
Description

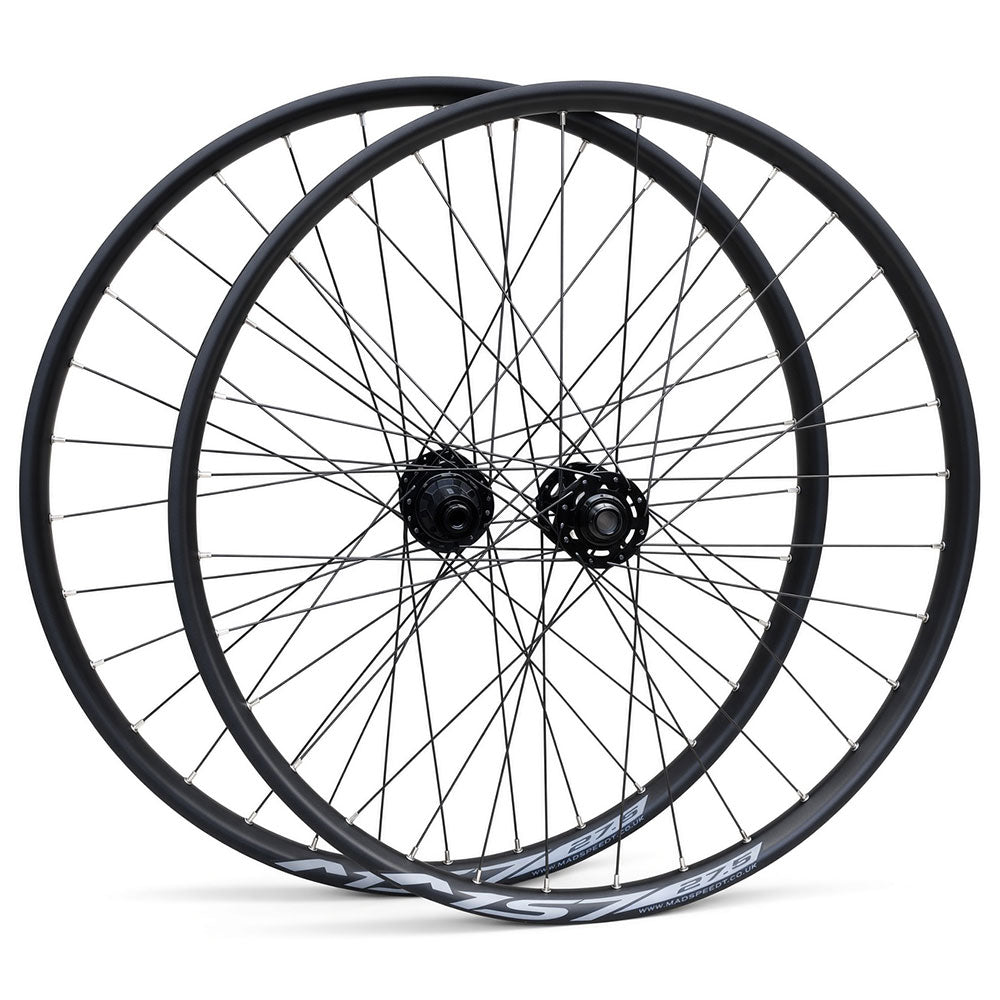

A premium, hand-built 27.5" MTB e-bike wheelset designed for demanding off-road riding and e-bike use. Featuring e-bike specific high-strength sleeved rims with a 30mm internal width, premium Taiwan sealed cartridge bearing hubs and high-strength Pillar PSR stainless steel spokes, this wheelset is built for strength, durability and reliable performance.

Specifications

Wheel Size 27.5" 650b (ETRTO 584x30)
Rim E-bike specific high-strength sleeved rim with 30% thicker alloy construction, sand blasted anodised finish and 4D spoke drilling
6069-T6 aluminium alloy (69% more tensile strength than standard 6061-T6 alloy)
Internal Rim Width 30mm
Rim Depth 24mm
Tyre Compatibility Recommended tyre width 2.2"–2.8"
Rim Type Clincher / Tubeless Compatible
Front Hub Premium Taiwan sealed cartridge bearings, 2x sealed bearings, 15x110mm Boost Thru Axle
Rear Hub Premium Taiwan sealed cartridge bearings, 4x sealed bearings, 12x148mm Boost Thru Axle, 120 points of freehub engagement, 6x3 pawls
High-strength chromoly steel rear axle for maximum stiffness and durability
Freehub Compatibility HG
Compatible with HG-standard 8–12-speed MTB cassettes, including Shimano and SRAM HG-type cassettes.
Micro Spline
Compatible with Shimano Micro Spline-standard 12-speed MTB cassettes.
XD
Compatible with SRAM XD-standard 11–12-speed MTB cassettes, including SRAM and other XD-compatible brands.
Brake Compatibility Disc Brake Only
Disc Mount 6-Bolt
Spokes 32x Pillar PSR spokes, black, high-grade T302 (18/10) stainless steel, J-bend, brass nipples
Valve Presta
Maximum System Weight 135kg (rider, bike and luggage combined)
Wheelset Weight 2170g

Maxle Note: The 12mm and 15mm maxles are not included, as these are specific to your frame and fork and are normally supplied with the frame and fork.

Pillar PSR Spokes: Pillar PSR spokes feature additional material at the spoke head, just before the J-bend, helping to reduce stress in this area. Made from high-grade T302 (18/10) stainless steel wire by Sandvik Sweden, with a black stainless treatment. The spokes have a breaking strength of 330KGF and are designed for high strength and durability.

Review

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Why Our Wheels?

If you're looking for quality wheels that are genuinely hand-built to a high standard, without the hand-built price tag, you're in the right place. Every wheel is backed by our no-nonsense 1-year warranty and lifetime support.

1. Hand-Built Wheels

We’re passionate wheel builders, and all our wheels are genuinely hand-built with care, allowing us to pay close attention to every detail of the build.

Each spoke is carefully tensioned to ensure even and consistent tension across the entire wheel, creating a strong, stable and reliable wheel designed for long-term performance, durability and reliability.

During the build process, each wheel is stress-relieved several times to help the spokes settle correctly. We also carefully check the dishing to ensure the rim is correctly positioned and centred over the hub.

2. Quality Components

We use quality rims, spokes and hubs, which are carefully sourced and selected for durability and reliability. Depending on the model, we use components from trusted brands such as DT Swiss, Pillar and Shimano.

3. One-Year Warranty & Lifetime Support – Complete Peace of Mind

We are extremely confident that you’ll love your new wheels and your experience with Madspeed7. However, in the rare event that you experience an issue within the warranty period, simply contact us and we’ll be here to put it right.

Our support doesn’t stop there. We offer lifetime support, with spare parts available for our wheels should you ever need them in the future.

With Madspeed7, our commitment doesn’t end with your purchase or when your warranty expires. We’re here to support you for the lifetime of your wheels.

10+ Years of Experience

4.9 out of 5 on Trustpilot from 200+ customer reviews.
