27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B MTB / E-Bike Rear Wheel – 12×148 Boost – 6-Bolt Disc – 30mm Inner Rim – Tubeless Compatible – 8–12 Speed – Heavy-Duty Rim
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims
27.5” 650B (ETRTO 584×30) MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148mm Thru Axle – 8/9/10/11/12 Speed – Performance Hubs – HG / Micro Spline / XD – Tubeless Compatible – Ultra-Strong Rims

27.5” 650B MTB / E-Bike Rear Wheel – 12×148 Boost – 6-Bolt Disc – 30mm Inner Rim – Tubeless Compatible – 8–12 Speed – Heavy-Duty Rim

Product Code: 923786
Availability: In Stock
From £193.50
From
£215.00
£193.50
You save £21.50
Only 3 left in stock
Compatibility Check? Ask An Expert
Description

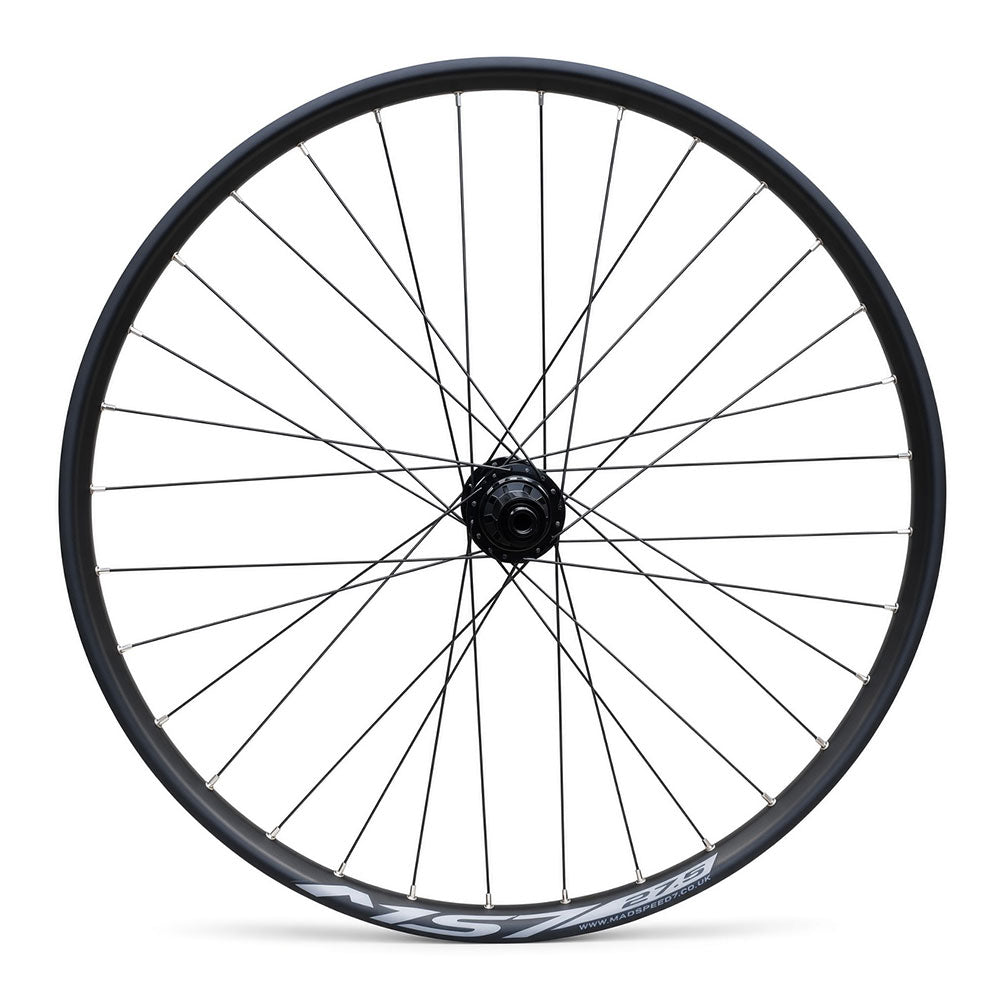

A premium, hand-built 27.5" MTB e-bike rear wheel designed for demanding off-road riding and e-bike use. Featuring an e-bike specific high-strength sleeved rim with a 30mm internal width, premium Taiwan sealed cartridge bearings hub and high-strength Pillar PSR stainless steel spokes, this wheel is built for strength, durability and reliable performance.

Specifications

Wheel Size 27.5" 650b (ETRTO 584x30)
Rim E-bike specific high-strength sleeved rim with 30% thicker alloy construction, sand blasted anodised finish and 4D spoke drilling
6069-T6 aluminium alloy (69% more tensile strength than standard 6061-T6 alloy)
Internal Rim Width 30mm
Rim Depth 24mm
Tyre Compatibility Recommended tyre width 2.2"–2.8"
Rim Type Clincher / Tubeless Compatible
Rear Hub Premium Taiwan sealed cartridge bearings, 4x sealed bearings, 12x148mm Boost Thru Axle, 120 points of freehub engagement, 6x3 pawls
High-strength chromoly steel rear axle for maximum stiffness and durability
Freehub Compatibility HG
Compatible with HG-standard 8–12-speed MTB cassettes, including Shimano and SRAM HG-type cassettes.
Micro Spline
Compatible with Shimano Micro Spline-standard 12-speed MTB cassettes.
XD
Compatible with SRAM XD-standard 11–12-speed MTB cassettes, including SRAM and other XD-compatible brands.
Brake Compatibility Disc Brake Only
Disc Mount 6-Bolt
Spokes 32x Pillar PSR spokes, black, high-grade T302 (18/10) stainless steel, J-bend, brass nipples
Valve Presta
Maximum System Weight 135kg (rider, bike and luggage combined)
Weight 1165g

Maxle Note: The 12mm maxle is not included, as this is specific to your frame and is normally supplied with the frame.

Pillar PSR Spokes: Pillar PSR spokes feature additional material at the spoke head, just before the J-bend, helping to reduce stress in this area. Made from high-grade T302 (18/10) stainless steel wire by Sandvik Sweden, with a black stainless treatment. The spokes have a breaking strength of 330KGF and are designed for high strength and durability.
